Tutorial 1: Create First Service

This short tutorial demonstrates how to create your first D-ASYNC service hosted with ASP NET Core and how to use synchronous HTTP communication.

1. Create New Asp Net Core Project

Using Visual Studio (or the method of your preference), create new empty ASP NET Core application.

2. Add D-ASYNC NuGet Packages

Using Visual Studio NuGet Package Manager, add a reference to the Dasync.Fabric.AspNetCore package.

NOTE: make sure to check the "Include prerelease" option, as the D-ASYNC version 2 is in beta at the moment of writing this tutorial.

You can also use the Visual Studio's Package Manager Console:

Install-Package Dasync.Fabric.AspNetCore -ProjectName DasyncTest

Or the NET Core CLI:

dotnet add package Dasync.Fabric.AspNetCore

3. Configure Startup

Modify the Startup.cs to include D-ASYNC runtime:

public void ConfigureServices(IServiceCollection services)
{
    services.AddDasyncForAspNetCore(model);
}

And to use the HTTP handler:

public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
{
    app.UseDasync();
}

4. Create Sample Service

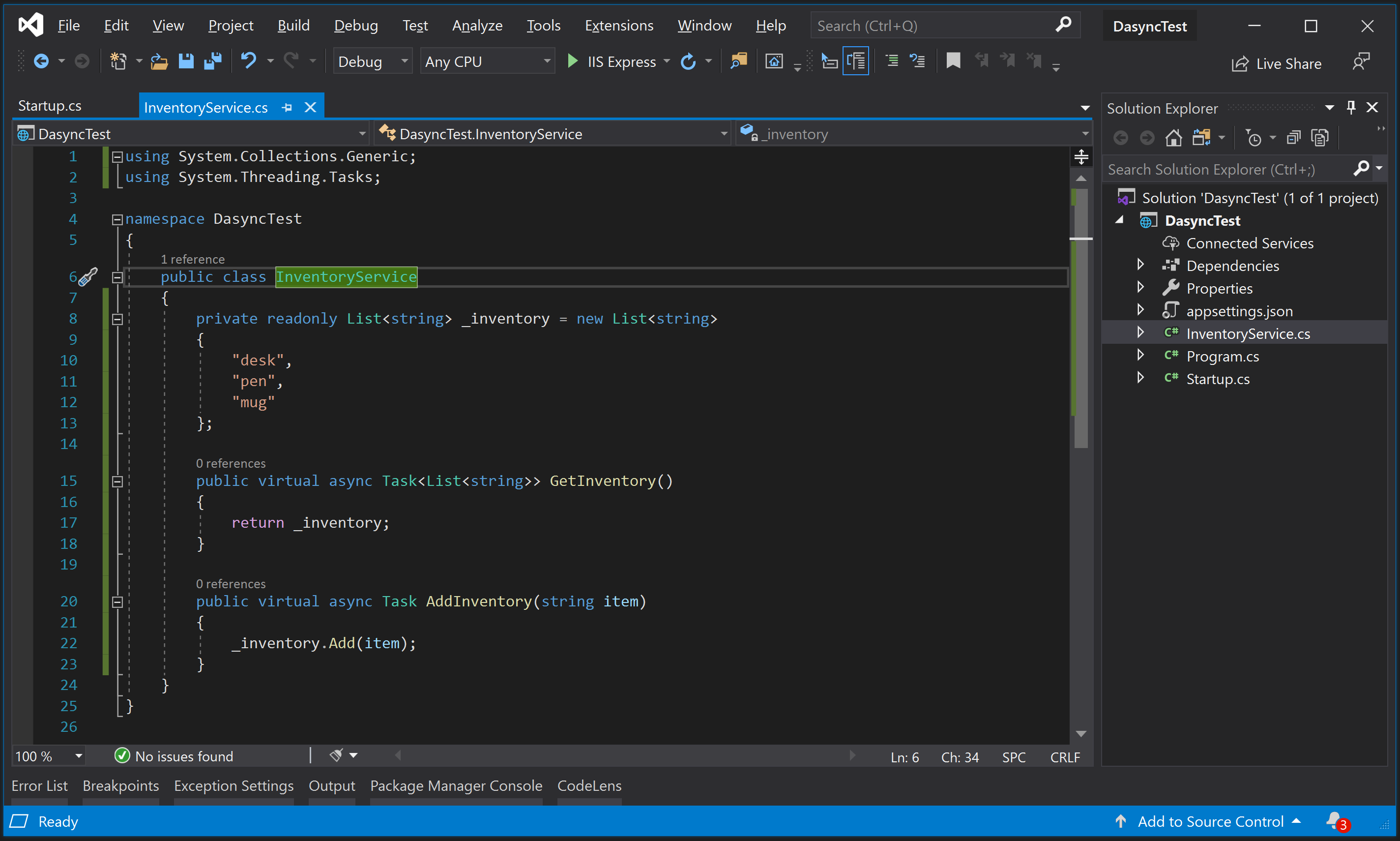

Add a new InventoryService.cs file to the project and implement the class as follows:

public class InventoryService
{
    private readonly List<string> _inventory = new List<string>
    {
        "desk",
        "pen",
        "mug"
    };

    // A query.
    public virtual async Task<List<string>> GetInventory()
    {
        return _inventory;
    }

    // A command.
    public virtual async Task AddInventory(string item)
    {
        _inventory.Add(item);
    }
}

5. Define Communication Model

The added InventoryService class needs to be declared as a D-ASYNC service using a Communication Model. The model allows you to fine tune a service declaration, however, that topic is not covered in this tutorial.

Go back to the Startup.cs and amend the ConfigureServices method:

var model = Dasync.Modeling.CommunicationModelBuilder.Build(_ => _
    .Service<InventoryService>(_ => { }));

services.AddDasyncForAspNetCore(model);

6. Execute Queries

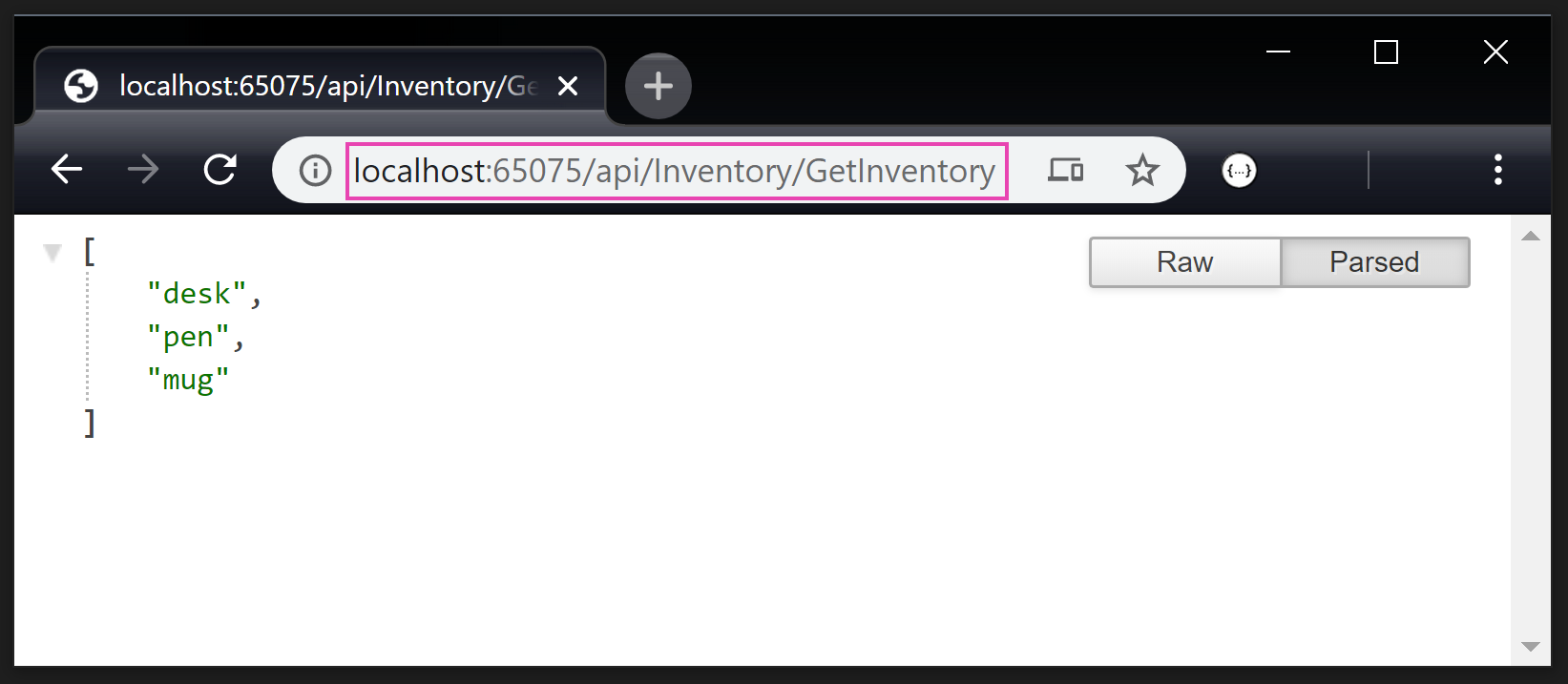

The project is ready to run, start the application (hit F5 in Visual Studio). By default it opens a browser window with no response from the service.

Modify the URL to invoke the query method by adding /api/Inventory/GetInventory, where /api is the default API path, /Inventory or /InventoryService is the service name, and GetInventory is the method name.

Alternatively, you can use PowerShell:

# PowerShell
# NOTE: set the right port number
 Invoke-WebRequest http://localhost:65075/api/Inventory/GetInventory

Or curl:

# bash
# NOTE: set the right port number
curl http://localhost:65075/api/Inventory/GetInventory

Or a GUI tool like Postman.

7. Execute Commands

Executing commands is similar to executing queries, except using the POST method instead of GET. Method names in the URL and input argument names in the request body must match the code.

With PowerShell:

# PowerShell
# NOTE: set the right port number
Invoke-WebRequest -Method 'POST' `
    -Headers @{"Content-Type"="application/json"} `
    -Body '{ "item": "chair" }' `
    -Uri 'http://localhost:65075/api/Inventory/AddInventory'

With curl:

# bash
# NOTE: set the right port number
curl -v --request POST \
  --header "Content-Type: application/json" \
  --data '{ "item": "chair" }' \
  http://localhost:65075/api/Inventory/AddInventory

You can also use a GUI tool like Postman.
